The Project

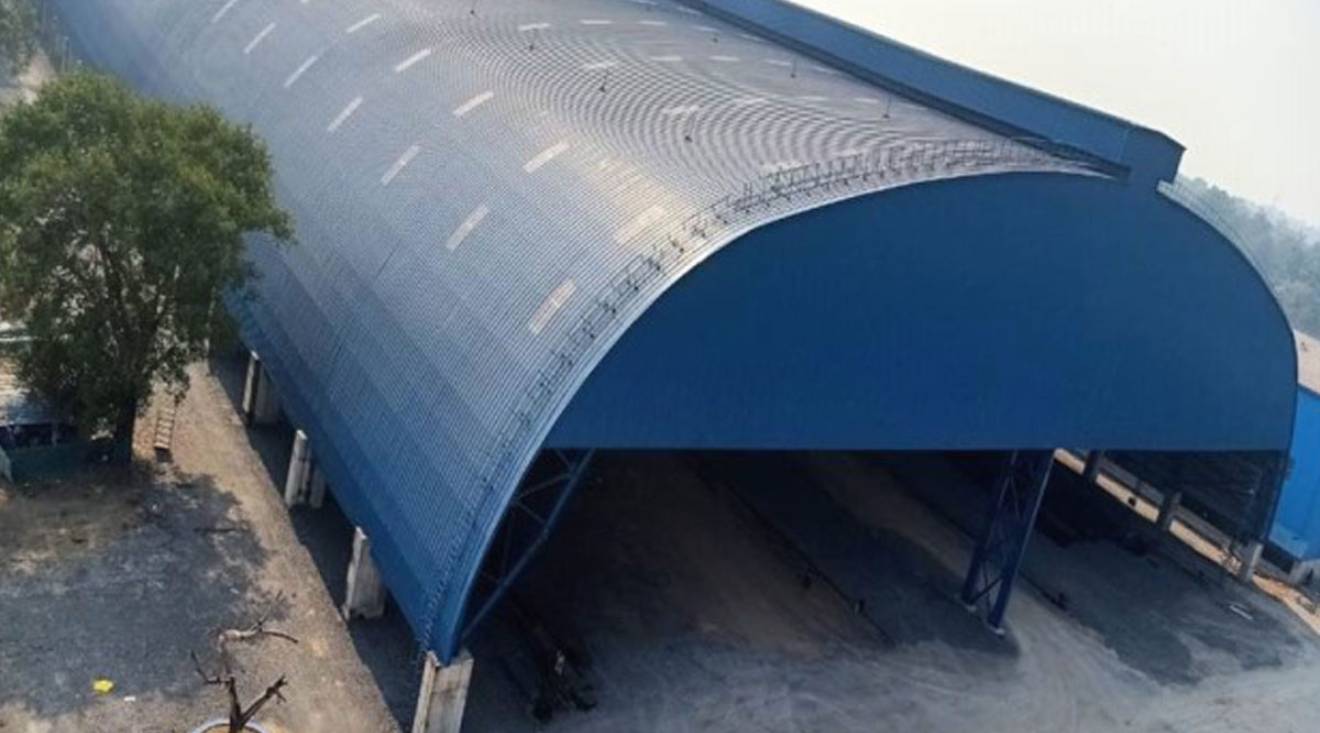

The building size is 104m wide, 130m long and the ridge height is 25m. Along the sidewall, there are 4m height RCC columns on which the steel frame will get connected. This is an expansion to the existing space frame structure which is age-old. The shape of the building is parabolic in nature having various dimension variations. Inside of the building, standalone Goliath crane for which both gables ends were open up to 12m clear height for crane movement. Due to wider spans truss system is adopted to optimise stell usage and also to limit serviceability within code requirements. The depth of the truss is 3m; all the members connected with bolts. Due to limitation in size of logistic for deeper depth members and for efficient logistic cost. This is first in nature for a much wider span with an open web truss option.
The Challenges
The Solution
